Monel 400 Tube and Tubing suppliers

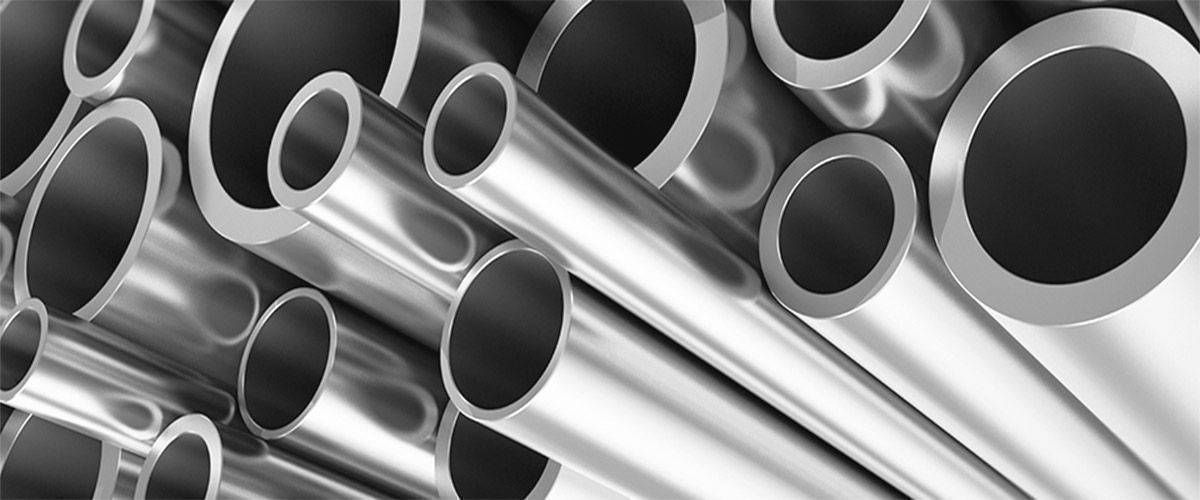

Mumbadevi Steel India (MSI) is a suppliers of Monel 400 Welded Tubes for special applications.
Other Names: ASTM B730 UNS N04400, Monel Tube, Monel Tubing, Alloy Tubes
Material: Monel 400
Brand: Mumbadevi Steel India (MSI)
Manufacturer: Mumbadevi Steel India (MSI)
Rating: 4.6/5 based on 82 customer reviews

ASTM B730 UNS N04400 • Monel 400 Tube • Monel Welded Tubes • Alloy 400 Tubing • UNS N04400 Tubes

Mumbadevi Steel India (MSI) supplies a comprehensive range of Monel 400 Tubes, catering for demands of a wide range of industries. ASTM B730 Tubes are available in random lengths or can be cut to specific lengths to meet your exact requirements. Alloy 400 Tubes is intended mainly for use in high-temperature, seawater and acidic environments.

Welded tubes have varied industrial applications such as chemical, petroleum, food processing, plumbing, heat exchangers, paper making, refrigeration, water treatment, steelwork, construction, etc. Choosing the proper tubing is very important and will help eliminate future problems and to improve overall quality of liquid or gas systems. Our astm Monel 400 Monel tubes are manufactured as per stringent manufacturing specifications create smoother, cleaner capillary tubing with consistently uniform ID characteristics and close dimension controls, the proprietary process creates the ultimate inner surface smoothness in the range of 10-15 RMS.

Mumbadevi Steel India (MSI) supplies a full range of Monel Tubes in sizes ranging from 1/8" OD TO 2 "OD, 3MM OD TO 38 MM OD. The thickness of the Monel 400 welded tube ranges from 1MM TO 3 MM, 0.028 TO 0.156 IN. Most pipes are available in single random, double random and cut length sections. Our ASTM B730welded tubes are characterized by tight tolerances with precise dimension accuracy, smooths bright surfaces and cleaned, free from oil, grease, and other particles. This ensures an optimized flow of liquids and gases for all kinds of industrial applications.

Mumbadevi Steel India (MSI) has been a renowned exporter of Monel welded tubes in countries such as South Africa, Thailand, Australia, Japan, Russia, UAE, Saudi Arabia, Qatar, Afghanistan, Taiwan, Spain, Poland, France, Germany, Canada, etc. We are Saudi Aramco approved company for welded tubing.

  • Tube Specification: ASTM B730 UNS N04400, ASME SB 730UNS N04400, WNR /DIN 2.436, NiCu30Fe & BS NA 30
  • Dimension Standard: ANSI B36.19, ANSI B36.10
  • Outside Diameter (OD): 1/8" OD TO 2 "OD 3MM OD TO 38 MM OD
  • Thickness Range: 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS
  • Type: Welded Tube, EFW Tube, ERW Tube
  • Form: Monel 400 Round Tube, Monel 400Square Tube, Monel 400Rectangular Tube
  • Length: Single Random, Double Random & Cut Length
  • Tubing End: Plain End, Beveled End, Threaded
  • End Protection: Plastic Caps
  • Delivery Condition: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
  • External Coating: 3LPE / 3LPP/ FBE/ DFBE/ PP
  • Origin: Indian Origin, European Origin, Japanese Origin
  • Testing and Documents: Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
  • Packing: Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

Monel 400 Tube Sizes in Stock

Size Thickness Type
1/8" OD TO 2 "OD 3MM OD TO 38 MM OD 1MM TO 3 MM 0.028 TO 0.156 IN Monel ERW Tubes, Monel Welded Tubes, Monel Fabricated Tubes, Monel LSAW Tubes

Forms of ASTM B730 UNS N04400 in Stock

In Stock Monel 400 Welded Square Tube Suppliers

Square Tube

Monel 400 Welded Square Tubes ASME SB730

In Stock Monel Welded Round Tube

Round Tube

Monel 400 Welded Round Tubes ASME SB730 in sizes 1MM TO 3 MM 0.028 to 0.156 IN

In Stock Monel 400 Welded Rectangular Tubing

Rectangular Tube

Monel 400 Welded Rectangular Tubes ASME SB730

  • Chemical Properties
  • Mechanical Properties
  • Physical Properties
  • C Ni Mn Fe S Si Cu
    MIN - 63.000 - - - - 28.000
    MAX 0.300 2.000 2.500 0.024 0.500 34.000
  • Yield Strength
    0.2% Proof
    (MPa)
    Tensile strength
    (MPa)
    Elongation
    (% in 50mm)
    Hardness
    (HV)
    MIN 195 480 35.00
    MAX       131
  • Density g/cm³ 8.8
      lb/in³ 0.318
    Melting Range °F 2370-2460
      °C 1300-1350
    Modulus of Elasticity ksi 103
    Curie Temperature °F 70-120
      °C 21-49
    Torsion   9.5
    Poisson's Ratio   0.32
    Tension   26
